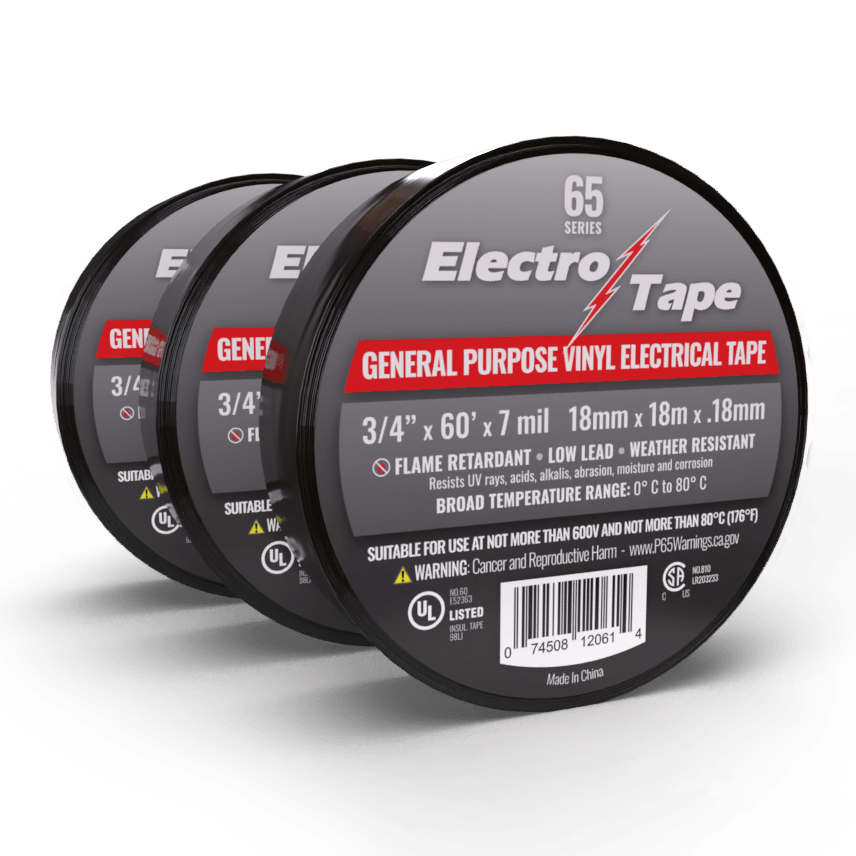

General Purpose Electrical Tape – 65 Series – 7 mil

Effective for use in industrial applications for permanent bundling or wrapping where conformability and aging resistance are critical.



Description

Electro Tape’s 65 Series is a conformable 7-mil thick vinyl plastic tape designed to perform in temperature environments up to 80°C (176°F). 65 Series has excellent resistance to: acids, alkalies, abrasion, moisture, corrosion and varying weather conditions (i.e.: sunlight). With its memory (elasticity), 7-mil thickness and adhesion characteristics, it provides moisture-tight electrical and mechanical protection.

Item # Roll Size Units / Case Case Size Case Weight
12010 3/4″ (18mm) x 30 ft 300 – Cello / Label n/a n/a
12060 3/4″ (18mm) x 60 ft 200 – Cello / Label n/a n/a
12008R 3/4″ (18mm) x 66 ft 200 – Cello / Label n/a n/a
12010-1300 3/4″ (18mm) x 30 ft 300 – Cello n/a n/a
12060-1200 3/4″ (18mm) x 60 ft 200 – Cello n/a n/a
12008R1200 3/4″ (18mm) x 66 ft 200 – Cello n/a n/a
12210 1″ (25mm) x 66 ft 48 – Bulk n/a n/a
12215 1.5″ (38mm) x 66 ft 36 – Bulk n/a n/a
12220 2″ (50mm) x 66 ft 24 – Bulk n/a n/a
12507 3/4″ (19mm) x 108 ft 100 – Bulk n/a n/a
12510 1″ (25mm) x 108 ft 48 – Bulk n/a n/a
12520 2″ (50mm) x 108 ft 24 – Bulk n/a n/a
L18048066 48″ (1219mm) x 66 ft 2 – Log n/a n/a
L18048108 48″ (1219mm) x 108 ft 2 – Log n/a n/a

Technical & Consumer Data

Features

  • Suitable for uses under 600V or 105°C (221°F)
  • Flame Retardant
  • Ideal for all applications where UL listed insulating materials are required
  • Non-corrosive, pressure-sensitive adhesive eliminates the need of heat, moisture, or other catalysts to affect application. No known hazards.
  • Colors available: Yellow, Red, White, Orange, Blue, Brown, Gray, Green, Black
  • UL 510 listed and CSA approved
  • Meets ROHS and California Standards on lead content
  • Meets MIL SPEC A-A-55809 (supersedes HH-I-595C) military specifications
  • Recommended one-year shelf life from date of dispatch if kept at moderate temperatures and humidity levels

Applications

  • Used for joining and splicing wires and cables for electrical insulation
  • Colors used for identification on variety of surfaces – such as stainless steel, aluminum, plastics, paper products, etc.
  • Effective for bundling in non-electrical applications due to its adhesion and conformability

Technical Performance

Description Units Value Test Method
Tape Thickness mm/mils 0.18 / 7.0 PSTC-33
Adhesion To Steel kg/cm, oz/in 0.20 / 18 ASTM D-1000
Adhesion To Backing kg/cm, oz/in 0.20 / 18 ASTM D-1000
Elongation At Break % 220 PSTC-31
Tensile Strength kg/cm, lbs/in 3.2 / 18 PSTC-31
Dielectric At Break volts/mil 1,250/mil, 8,750 volts total ASTM D-1000
Service Temp Range °C 0°C – 105°C

The physical and performance characteristics shown are averages obtained from tests recommended by ASTM, government agencies or our own procedures. A particular roll may vary slightly from these averages and it is recommended that the purchaser determine the suitability for his own purpose.

⚠️ WARNING: This product can expose you to chemicals including DEHP di2-ethylhexylphthalate, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www. P65Warnings.ca.gov

Downloads

Technical Data Sheet
