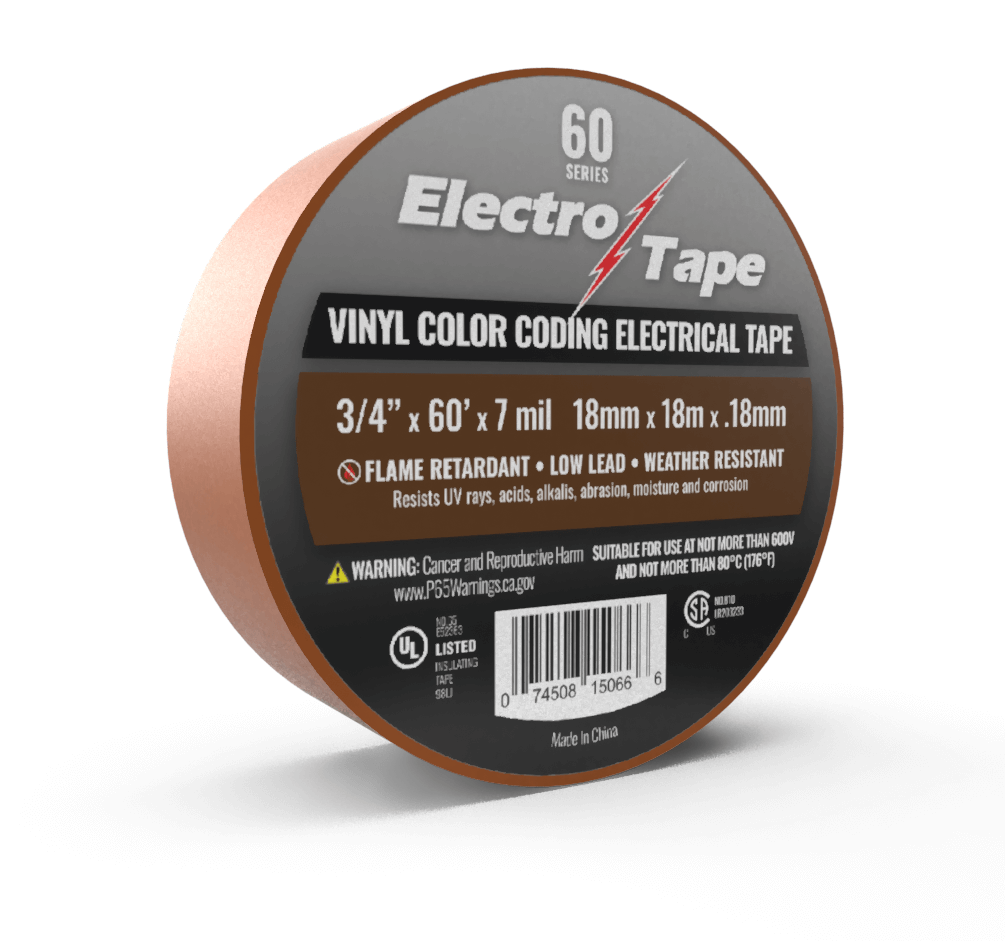

General Purpose Color Coding Electrical Tape – 60 Series

Suitable as a phasing tape for electrical conduit, circuit wires, motor leads, splices and terminations. Very conformable – provides moisture-tight electrical and mechanical protection. Resists UV rays, acids, alkalis, abrasion, moisture, and corrosion.

Available Colors:

Yellow 15061-0100 15061-1100 15061-0050 15061-3048 L150660710

Description

Electro Tape’s 60 Series is a conformable 7 mil thick vinyl plastic tape designed to perform in temperature environments up to 80°C (176°F). 60 Series has excellent resistance to: acids, alkalies, abrasion, moisture, corrosion and varying weather conditions (i.e. sunlight). 60 Series, with its memory (elasticity) 7 mil thickness and adhesion characteristics, provides moisture-tight electrical and mechanical protection. Suitable as a phasing tape for electrical conduit, circuit wires, motor leads, splices and terminations.

Item # Roll Size Units / Case Case Size Case Weight
1506_-0100 3/4″ x 60′ x 7 mil 100 – Cello / Label n/a n/a
1506_ 3/4″ x 60′ x 7 mil 50 – Cello /  Label n/a n/a
1506_-3048 3/4″ x 60′ x 7 mil 48 – Cello / Label / Plastic Container n/a n/a
1507_-1048 1″ x 66′ x 7 mil 48 – Cello / Label n/a n/a
1509_-1024 2″ x 66′ x 7 mil 24 – Cello / Label n/a n/a
L1506607_0 50.6″ x 66′ x 7 mil 2 – Log n/a n/a
15061-0100, 15061-0050, 15061-3048, L150660710 Yellow (1) 15062-0100, 15062-0050, 15062-3048, L150660720 Red (2) 15063-0100, 15063-0050, 15063-3048, L150660730 White (3) 15064-0100, 15064-0050, 15064-3048, L150660740 Orange (4) 15065-0100, 15065-0050, 15065-3048, L150660750 Blue (5) 15066-0100, 15066-0050, 15066-3048, L150660760 Brown (6) 15067-0100, 15067-0050, 15067-3048, L150660770 Gray (7) 15068-0100, 15068-0050, 15068-3048, L150660780 Green (8) 15060-0100, 15060-0050, 15060-3048, L150660700 Purple (0)

Technical & Consumer Data

Features

  • Polyvinyl chloride (PVC backing) and Pressure sensitive (rubber based adhesive)
  • Memory (elasticity) of the tape allows it to hold tightly and provide pressure without slipping or flagging
  • Compatible with all solid dielectric cable insulations
  • Highly resistant to chemical attack, ultra violet light and physical abuse
  • Will not crack, split, slip or flag when exposed to various environments
  • Low lead
  • Meets UL requirements for 80°C
  • UL 510 listed and CSA approved

Applications

  • Primary electrical insulation for all wire and cable splices up to 600 volts and 80°C (176° F).
  • For wire and cable harnessing
  • Excellent abrasion resistance for high voltage cable splices and termination (forms a protective jacket)

Physical Properties

  • Normal temperature rating – UL: 80°C
  • Colors: Yellow, Red, White, Orange, Blue, Brown, Grey, Green, Purple
  • Thickness (ASTM D-1000 78): 7.5 mils
  • Adhesion to steel (ASTM D-1000 78 72°F): 23 oz/in
  • Adhesion to backing (ASTM D-1000 78 72°F): 21 oz/in
  • Breaking strength (ASTM D-1000 78 72°F): 18 lb/in
  • Elongation (ASTM D-1000 78 72°F): 200%
  • Dielectric Strength (volts): 8750
  • Dielectric Wet (volts): 7900
  • Electrolytic corrosion (ratio): 1.0
  • Insulation resistance megohms (ASTM D-1000 78): 1 X 1014th
  • Water absorption: 1%
  • Resistance to ultraviolet light: Pass
  • Resistance to alkalies: Excellent

The physical and performance characteristics shown are averages obtained from tests recommended by ASTM, government agencies or our own procedures. A particular roll may vary slightly from these averages and it is recommended that the purchaser determine the suitability for his own purpose.
