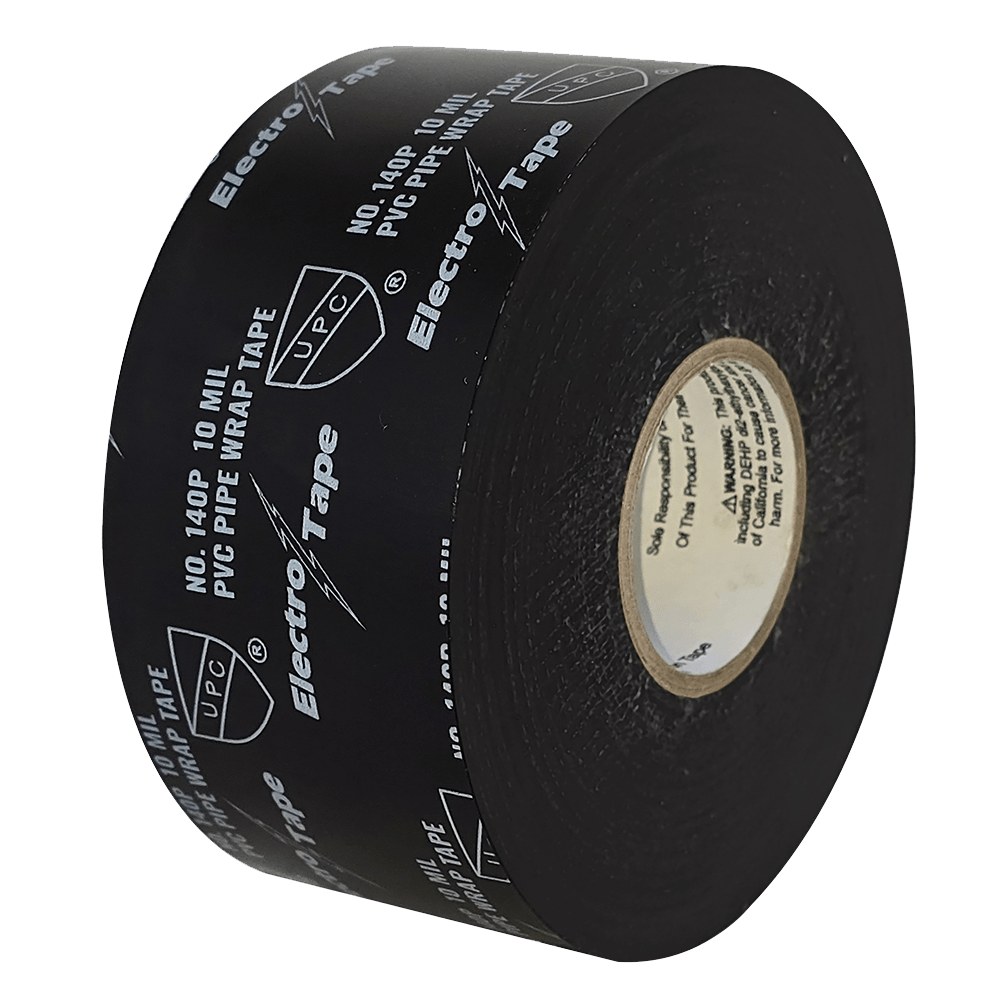

U.P.C. Printed PVC Pipewrap Tape – 10 mil – 140P Series

Printed with U.P.C. shield for quick code recognition.

Pliable, easy to apply.

Available in black only.


upc-pipewrapOur 140P Series U.P.C. Printed general purpose pipewrap is a general use black polyvinyl chloride tape with pressure sensitive adhesive. It is specifically designed to protect external pipe surfaces from corrosion. It is ideally suited for valves, elbows and fittings, both in plant and outdoors. This versatile product can be easily applied by hand or machine under varying weather conditions.

Provides outstanding protection against sunlight, weather, acids, alkalies, corrosive salts and fumes, salt water, aging, and animal and plant acids.

Item # Roll Size Units / Case Case Size Case Weight
140110E 1″ (25mm) x 100 ft 48 / case – Bulk 13.6″ x 9.3″ x 9.1″ 28 lbs
140210E 2″ (50mm) x 100 ft 24 / case – Bulk 13.6″ x 9.3″ x 9.1″ 28 lbs

Technical & Consumer Data

Physical Properties

Temperature Rating-Max:  80°C (176°F)
Temperature Range:  -20°F to 176°F
Minimum Application Temperature:  40°F
Thickness:  10 mil
Color:  Black
Adhesion To Steel:  20 oz. / in.
Tensile Strength:  20 lbs. / in.
Elongation:  150%

The physical and performance characteristics shown are averages obtained from tests recommended by ASTM, government agencies or our own procedures. A particular roll may vary slightly from these averages and it is recommended that the purchaser determine the suitability for his own purpose.


Technical Data Sheet

Safety Data Sheet
