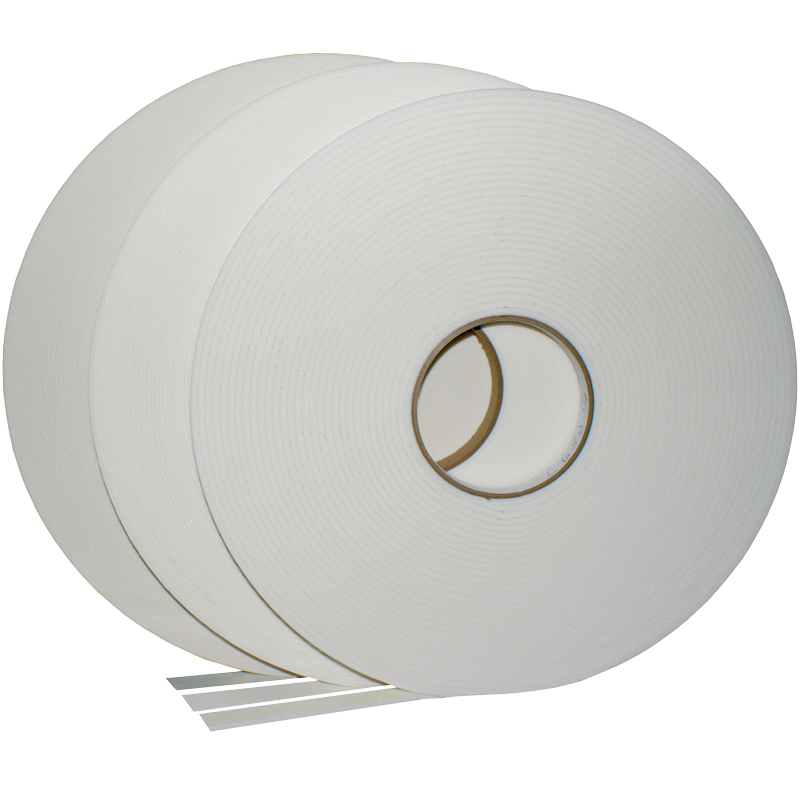

Polyethylene Foam Tape – Rubber Adhesive – 650 Series

Suitable for mounting various substrates such as glass, metals, some plastics, papers, and films

May be used to provide a gasket, seal, or to cushion and dampen vibration

Available Colors:

Description

Features/Benefits

  • Excellent Quick stick, even to low energy surfaces.
  • Good resistance to humidity, mild acids, oil, and grease.
  • Foam has superior conformability and compressability allowing bonding to textured and irregular surfaces.
  • Easily die cut.

Applications

  • Used for mounting nameplates, signs, small die cast parts, mirrors and for sound and vibration dampening.
Item # Thickness Size Units / Case Pack
65017R 1 / 32″ 0.5″ (12 mm) x 72 yd 24 / case Bulk
65018R 1 / 32″ 0.75″ (18 mm) x 72 yd 16 / case Bulk
65019R 1 / 32″ 1″ (24 mm) x 72 yd 12 / case Bulk
65011R 1 / 16″ 0.5″ (12 mm) x 36 yd 24 / case Bulk
65012R 1 / 16″ 0.75″ (18 mm) x 36 yd 16 / case Bulk
65013R 1 / 16″ 1″ (24 mm) x 36 yd 12 / case Bulk
65041R 1 / 8″ 0.5″ (12 mm) x 18 yd 24 / case Bulk
65042R 1 / 8″ 0.75″ (18 mm) x 18 yd 16 / case Bulk
65043R 1 / 8″ 1″ (24 mm) x 18 yd 12 / case Bulk

Technical & Consumer Data

Physical Properties

Adhesive: Hi Performance Rubber (Solvent based) adhesive coated on both sides
Carrier: Crosslinked PE foam (1/8” & 1/16” at 4PCF and 1/32” at 6 PCF)
Liner: 49 lb. bleached glassine paper release liner
Thickness: 1/32” (31 mil) – 1/16”(62mil) – 1/8”(125mil)
Peel Adhesion: PSTC-3    >90 oz. / inch  or Foam Tear
Shear Strength: 2 psi indefinite
Elongation: 300%
Tensile: 5 lb./inch
Heat Resistance: 176 °F (79°C )
Minimum Application Temp: -10 °F (-23°C )

The physical and performance characteristics shown are averages obtained from tests performed according to ASTM and PSTC test methods. SUPPLIER can make no warranty of any kind as to the results of the adhesive product use. The information published here is representative of laboratory research on these products and is believed to be reliable. The information does not constitute a performance guarantee. Performance of the products may vary with individual applications and the purchaser should satisfy himself prior to use as to the suitability of the product for the particular application. SUPPLIER shall not be liable for damages in excess of the purchase price of its products or for incidental or consequential damages.

Downloads

Technical Data Sheet
