IrriGATOR Drain Tile Tape Bulk Wholesale Corrugated

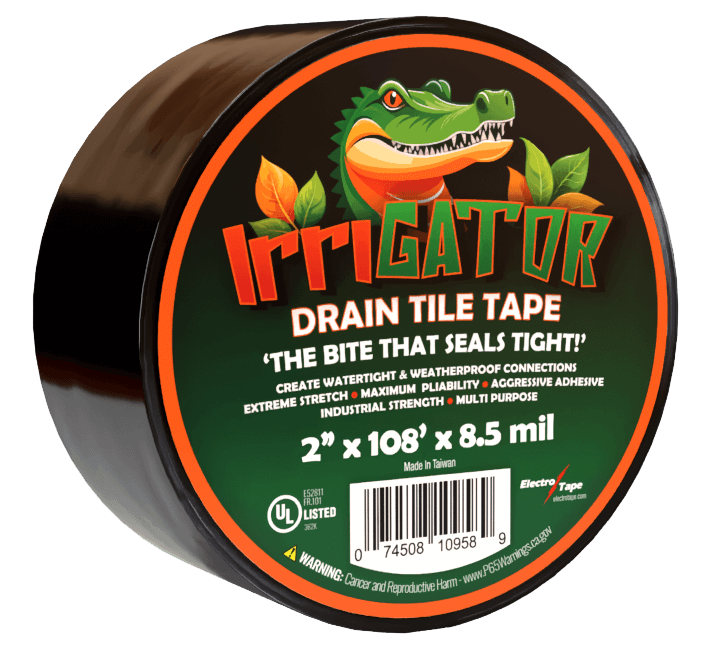

IrriGATOR Drain Tile Tape – 8.5 mil – 109 Series

Ideal for corrugated drain tiles, PVC elbows and fittings, pipe surfaces and more

Maintains a watertight seal in all weather conditions

Wide temperature range

Highly conformable

Description

IrriGATOR Drain Tile Tape is a general use 8.5 mil black polyvinyl chloride tape with pressure sensitive adhesive. It is specifically designed to connect and join elbows, fittings for drain tiles, as well as provides protection for external metal pipe surfaces from corrosion. 108 ft length – Readily available in 2” and 4” widths however custom widths are available upon request.

Item # Roll Size Units / Case Case Size Case Weight
10929 2″ (50mm) x 108 ft 24 – Individually Wrapped n/a n/a
10949 4″ (100mm) x 108 ft 12 – Individually Wrapped n/a n/a

Custom widths available upon request

Technical & Consumer Data

Temperature Rating – Max: 105°C (176°F)
Temperature Range: -12°C to 105°C (176°F)
Thickness: 8.5 mil
Color: Black
Adhesion To Steel (ASTM D-1000 78 72°F): 23 oz/in
Tensile Strength (ASTM D-1000 78 72°F): 23 oz/in
Elongation (ASTM D-1000 78 72°F): 200%

Physical characteristics shown are averages from tests recommended by our own procedures.
A particular roll may vary slightly from these averages. The buyer should determine the suitability for his own use.

Downloads

Technical Data Sheet

Sell Sheet
