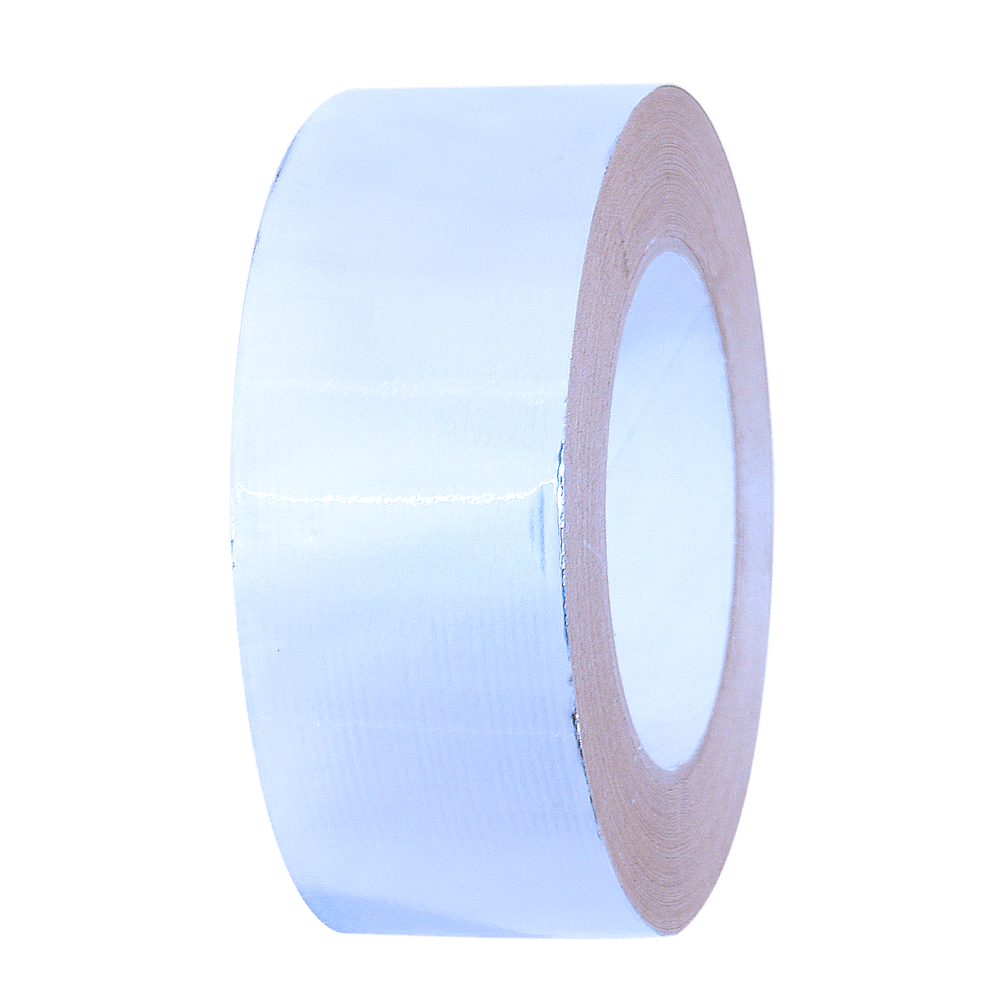

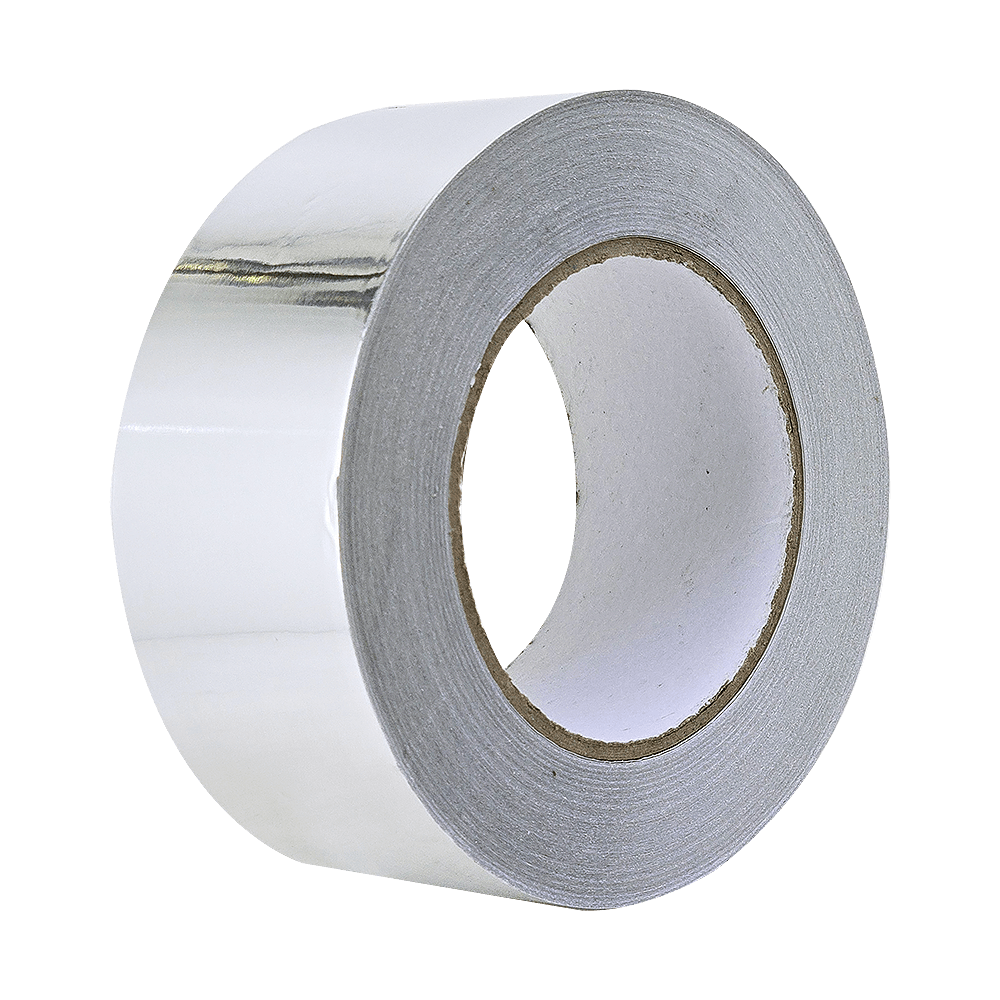

General Purpose Foil Tape – 502 Series – Rubber Adhesive – 1.6 mil

Aggressive rubber adhesive formulation

Bonds tightly and permanently to insulation facing, HVAC ducts and industrial metal surfaces

Description

502 Series General Purpose Foil Tape is a general purpose dead soft aluminum foil tape manufactured with a 1.6 mil foil and aggressive rubber adhesive formulation. Bonds tightly and permanently to insulation facing, HVAC ducts and industrial metal surfaces. 502 foil tape conforms well to both fibrous and sheet metal ducts as well as many irregular shaped surfaces.

Features

  • Flame-Retardant tested in accordance with UL 723 and ASTM E-84
  • Wide temperature range from 0ᵒF to 200℉

Applications

  • Sealing of fiberglass duct board, sheet metal and FSK systems.
  • Patching metal surfaces in aerospace, industrial and transportation applications.
Item # Roll Size Units / Case Case Size Case Weight
50220 2″ (48mm) x 50 yd 24 – Bulk 11.75″ x 12″ x 12.5″ 32 lbs

Technical & Consumer Data

Adhesive: 1.8 mil rubber
Backing: 1.6 mil aluminum foil
Liner: 42 lb SCK
Color: Silver
Total Thickness: 3.4 mil (PSTC-133)
Adhesion To Steel: 18 oz/in (PSTC-101)
Adhesion To Backing: 18 oz/in (PSTC-101)
Tensile Strength: 20 lbs/in (PSTC-131)
Elongation at Break: 3% (PSTC-131)
Dielectric at Break: 1,000 volts/mil (ASTM D-1000)
Service Temperature Range: 0°F-200°F (Internal)
Flame Spread: Flame ≤25   Smoke ≤50 (UL 723/ASTM E-84)

Downloads

Technical Data Sheet
