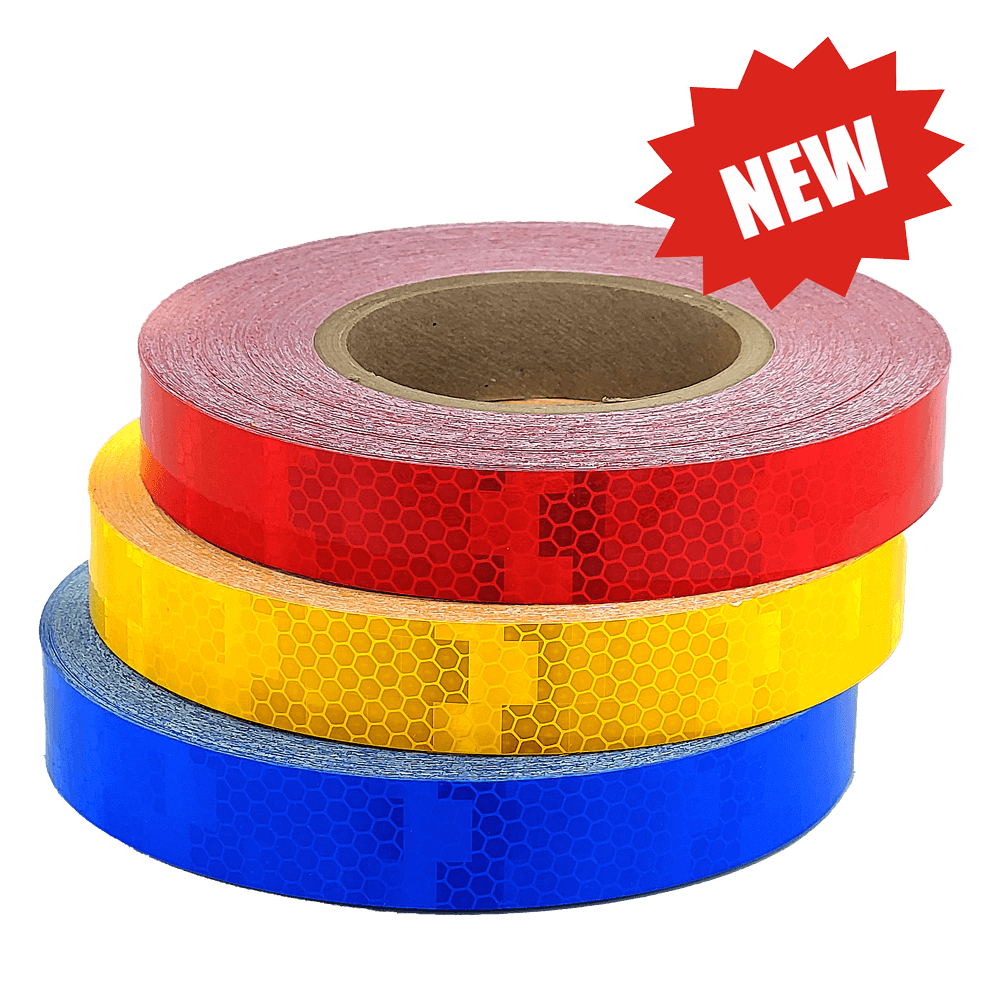

Prismatic Reflective Tape – Solid Color – 835 Series

New & Improved Product!

Engineering grade retroreflective tape ideal for safety signage applications

Recommended for various flat surfaces and substrates

Meets ASTM D 4956 Reflectivity Type 1

Available Colors:

Description

Our 835 Series prismatic tape is a high quality, durable, enclosed lens retroflective material. This reflective tape offers exceptional value for permanent traffic signage applications. Meets applicable requirements for engineer grade applications for Type I retroreflective sheeting as set forth in ASTM D 4956.

Product is not intended for vehicle applications or on surfaces that are subject to any flex. For vehicle applications, we recommend our conspicuity tape products.

Item # Size Units / Case Pack
835_ 1″ (25.4 mm) x 150 ft Sold by the roll Bulk Packed
836_ 1″ (25.4 mm) x 30 ft Sold by the roll Bulk Packed
Yellow 8351 8361 Yellow (1) Red 8352 8362 Red (2) Silver/White 8353 8363 Silver/White (3) Orange 8354 8364 Orange (4) Blue 8355 8365 Blue (5) Green 8358 8368 Green (8)

Technical & Consumer Data

Physical Properties

Tape Thickness: 6.8 mils (0.175”)
Liner Paper: 80# (not lay-flat)
Tensile Strength: 11 lbs. per inch width
Adhesion: 70 oz. per inch of width (90’ peel test)
Application Temperature: Above 320F
Durability Tape: 7 years
Durability Inks: Varies by color, UV, latitude, ect.
Gloss: 96 (glossmeter 850)
Elongation:  5%

The physical and performance characteristics shown are averages obtained from tests recommended by ASTM, government agencies or our own procedures. A particular roll may vary slightly from these averages and it is recommended that the purchaser determine the suitability for his own purpose.

Downloads

Technical Data Sheet
